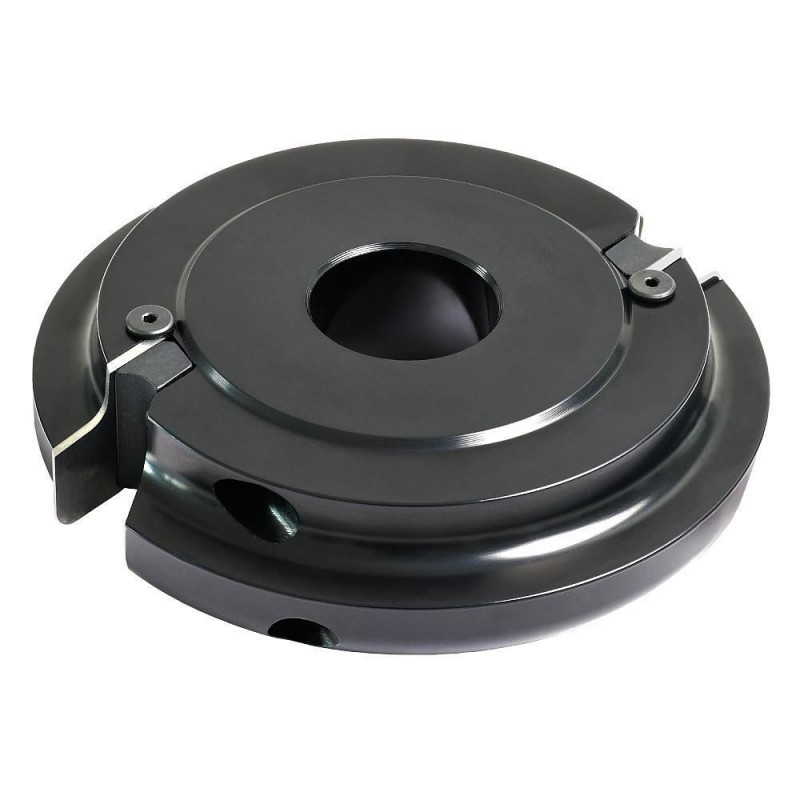

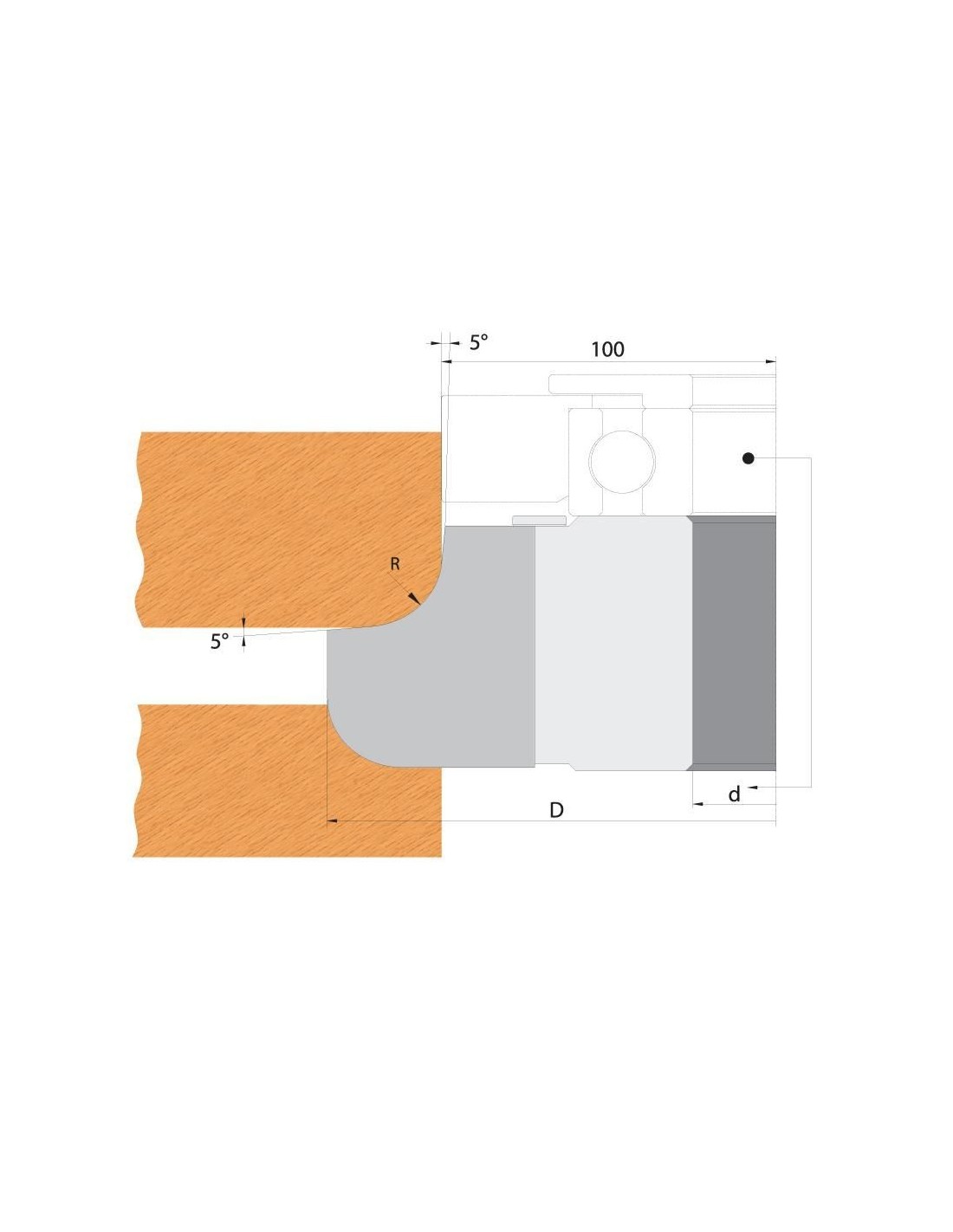

The cutter is used to create the inner and outer radii - curvature. The cutter is equipped with two radial knives with concave and convex R4 radius. Other radii R3, 5, 6 and 8 can be ordered. For edge rounding and profiling of panels and parts made of soft and hardwood. To rout curved pieces, add a guide bearing. Bore size d=30 mm.
• Robust body made of aluminium alloy.
• 2 HM knives - 4mm convex radius / concave (25x23x2 mm).
• For manual MAN feed.
• Threaded pins for simple fitting of blades.
• Additional radii can be ordered R3, R5, R6, R8mm.
Parameters: 2 Knives, speed 6 400 - 10 500 rpm. Manual MAN feed of material.
