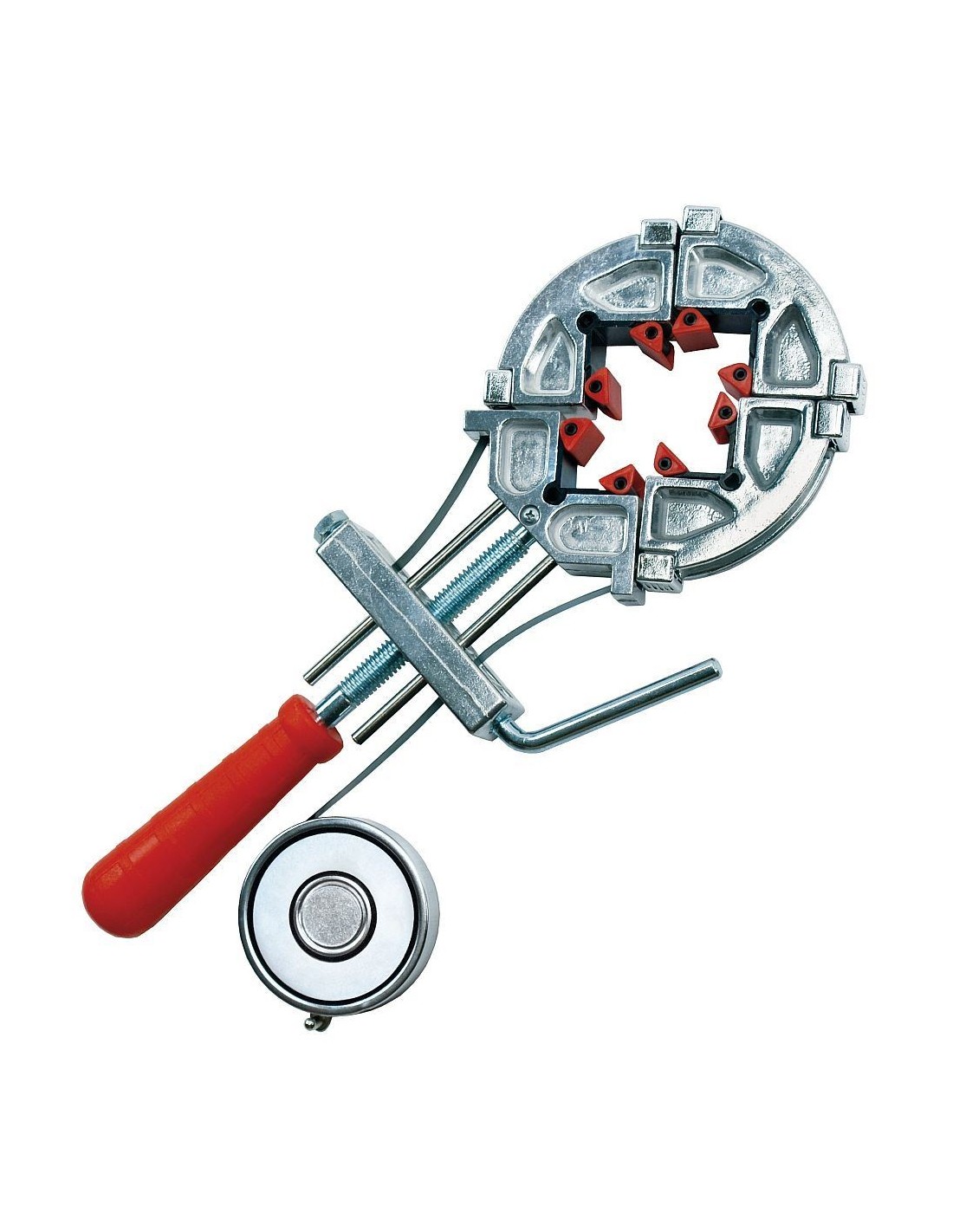

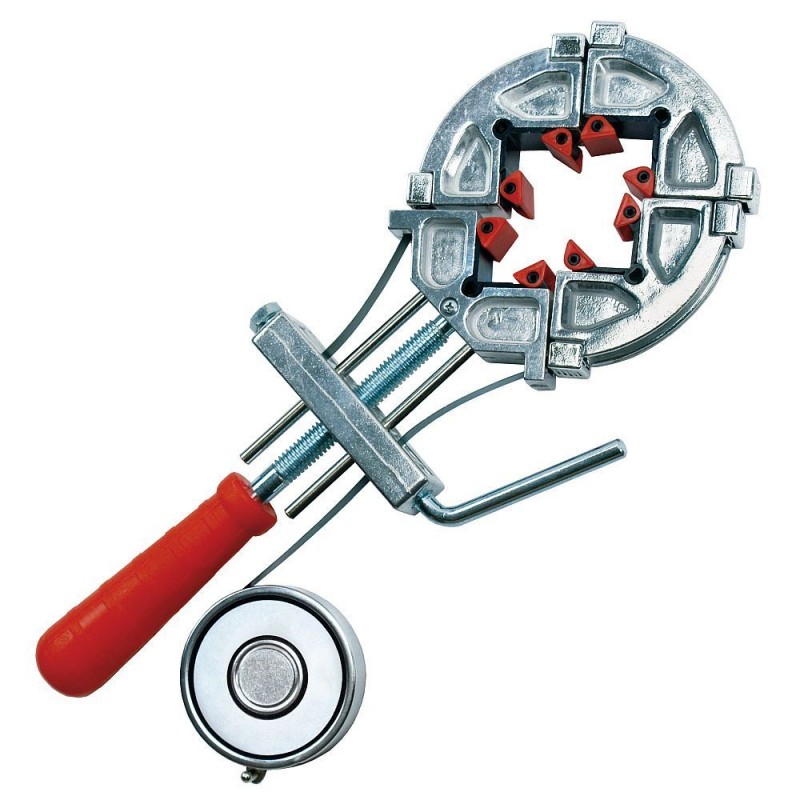

IGM Fachmann Frame Clamp

• Aluminium base and corner parts.
• Nylon swinging parts.
• Steel tightening strap with a reel.
• Strong and precise bond every time.
• Evenly distributed pressure in all joints.

The IGM Frame Clamp is a handy jig for frame clamping of various shapes with a maximum of 4 corners in the basic version. Once the adhesive has been applied, simply place your frame in the jig and tighten. The tightening strap is made of high-strength, heat-treated steel and has rounded edges for your safety. The dural fixation segments have removable swinging nylon parts to avoid damaging the surface of the frame. The swing mechanism of the corner segments eliminates the angular deflection and allows you to tighten even a triangular frame, semi-circular arc or other irregular shapes. The tightening strap is on a reel to ensure safe manipulation. When tightened, an accurate and solid joint with uniformly distributed pressure is always achieved, ready for bonding. For frames from 65 x 65 mm up to 915 x 915 mm.

• Maximum circumference of the frame: 3,6 m
• Steel strap width: 10 mm
• Nylon corner segment height: 25 mm
• Weight: 1,1 kg
