IGM FD600 Dovetail Jig 610 mm including Dovetail Bit 12,7 mm

Create elegant joints quickly and easily. Suits all types of routers.

• Comes in two sizes.
• Solid steel body.
• Precision laser-cut template made of 4 mm galvanized sheet steel.
• Robust edge stops.
• Adjustment stops for simple attaching of the workpiece to the jig.
• Steel robust clamping bars.
• Simple use and setup.
• Small lapped dovetail, box joints and through dovetails jigs are available as accessories.
• Specially threaded holes for edge stops.

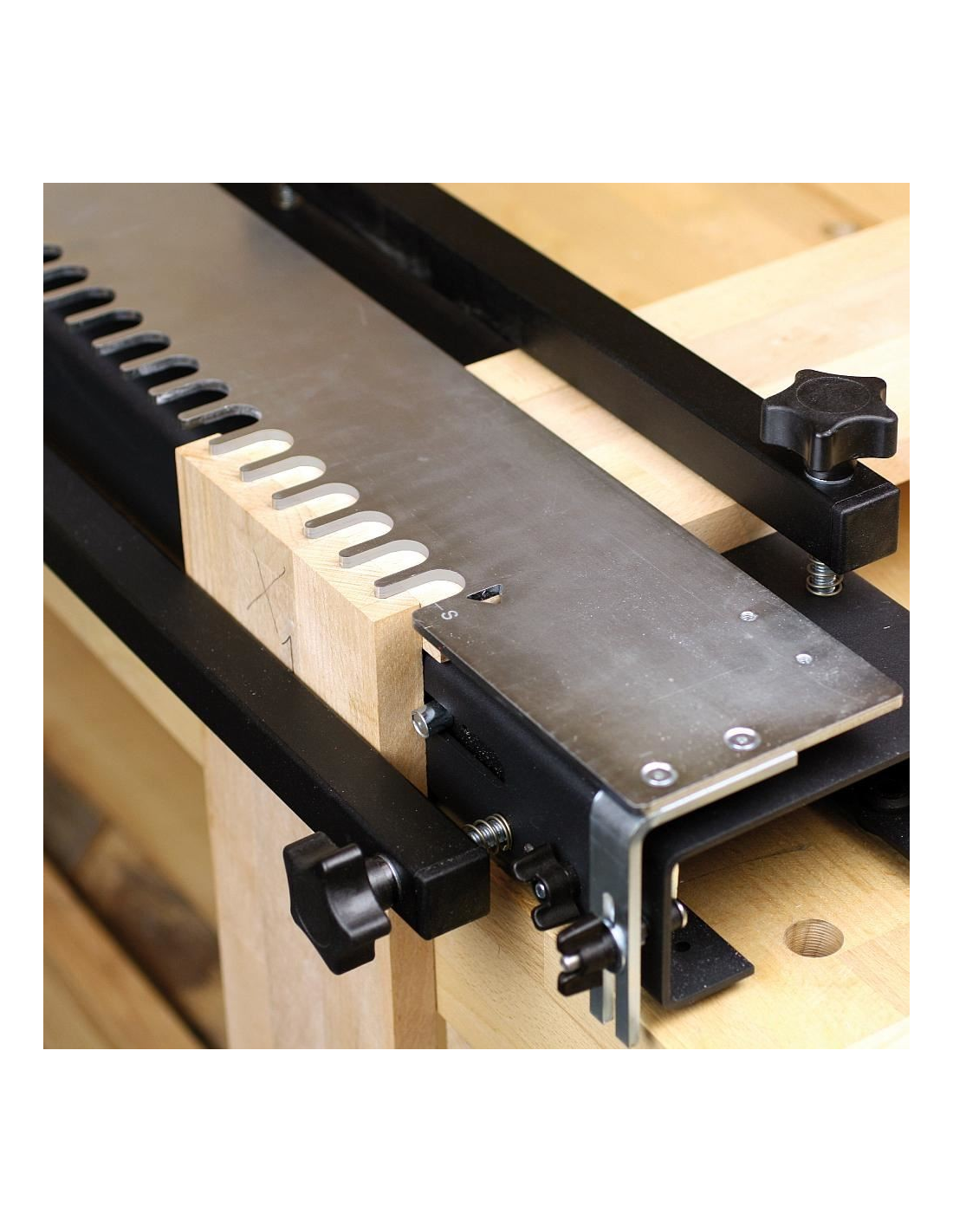

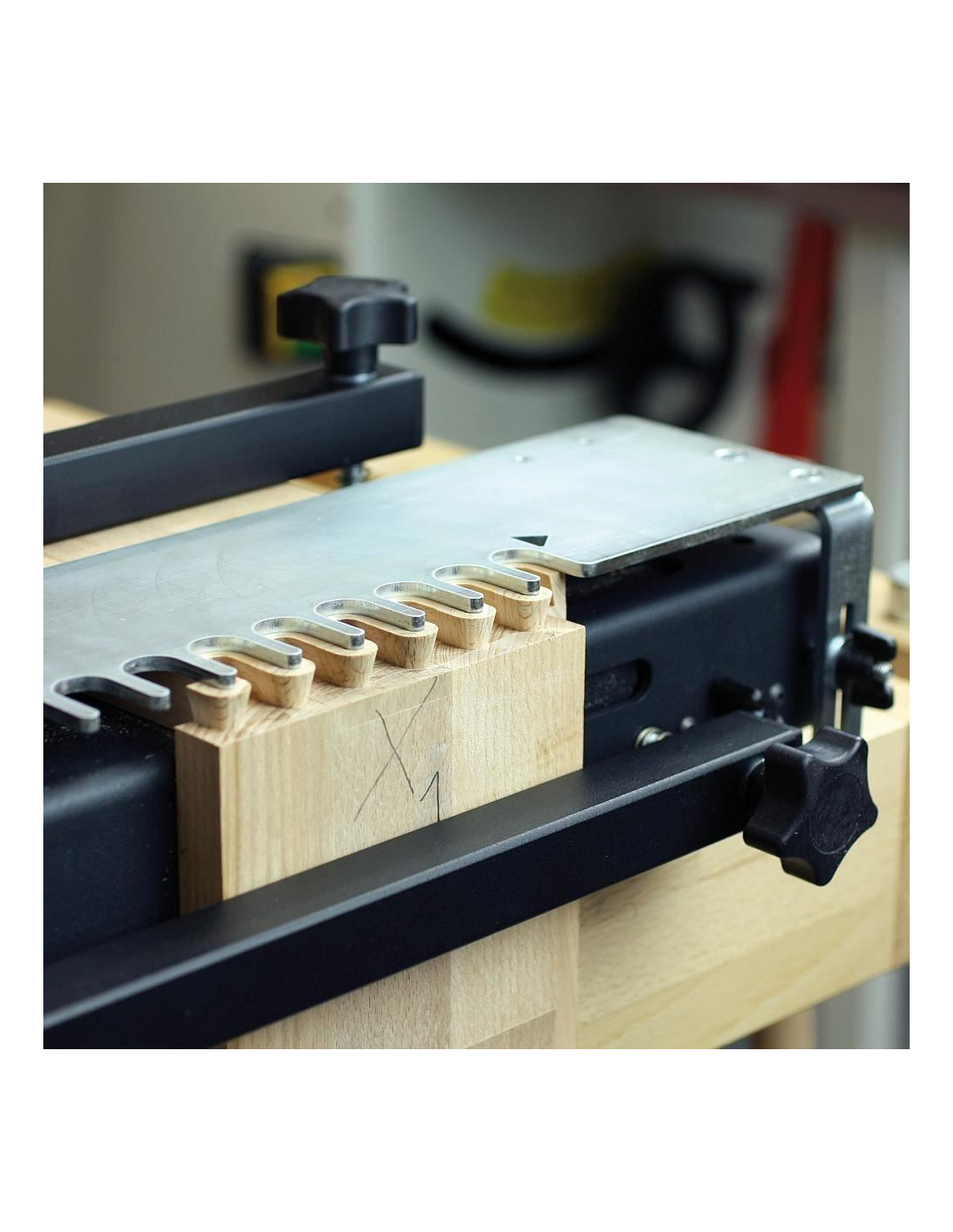

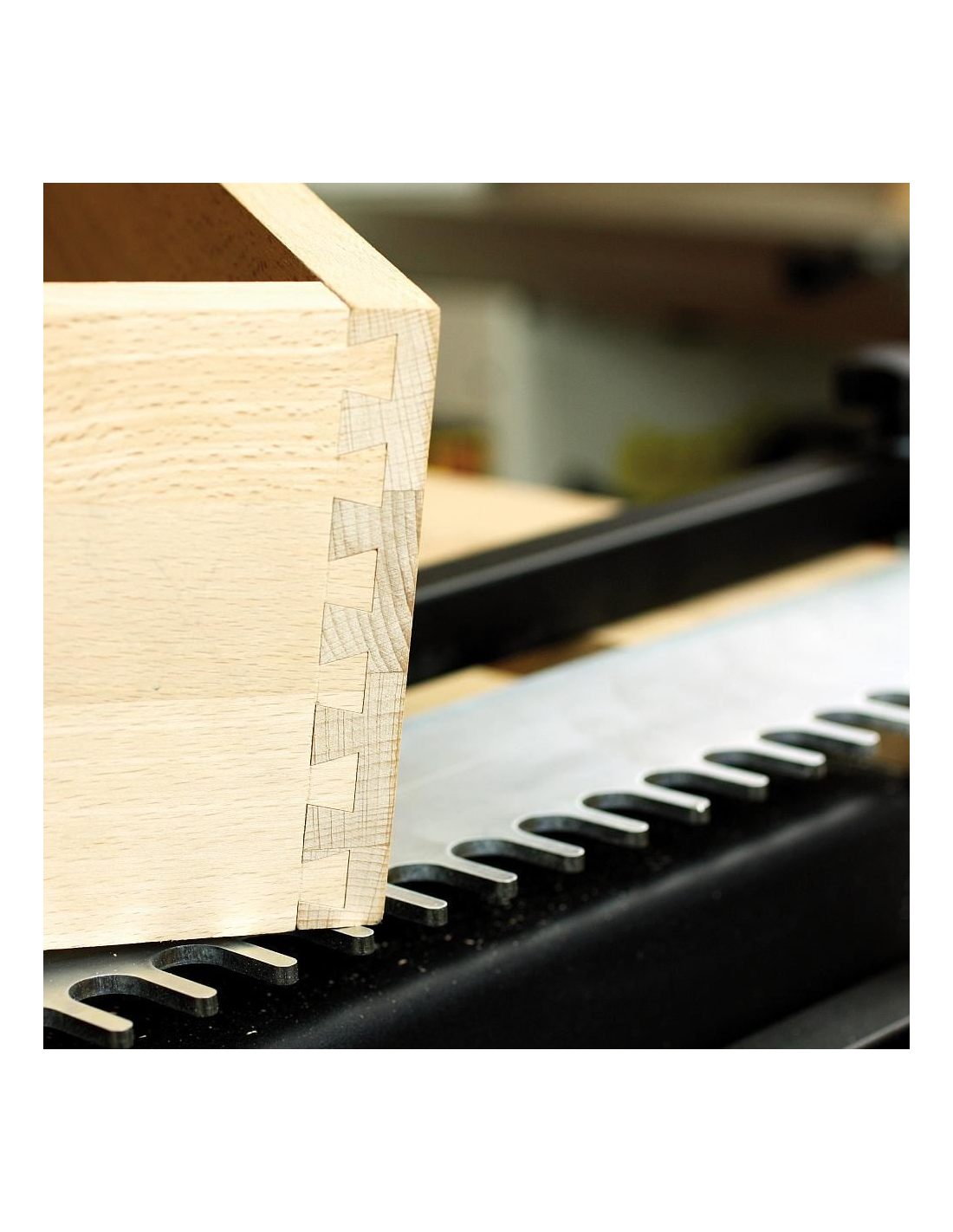

The IGM Dovetail Jig can be used to cut half blind dovetails with router and a router bit. The half blind dovetail joint is usually ideal for making drawers from solid wood. Thanks to optional templates, you can create all sorts of different joints such as box joints, or through dovetail joints, usually used when making solid wood furniture, jewelry boxes or solid wood containers. The robust clamps are able to hold bigger workpieces as well. Simply clamp the workpiece to the body of the jig, affix the chosen template, set the depth of routing and with help of the guide bush clamped onto your machine, rout out the chosen joint. The Dovetail jig is made in Czech republic.

Specification:
• Dovetail size: 12,7 mm 14°
• Workpiece thickness: 11 - 25 mm
• FD300 workpiece width: 610 mm
• Guide bush size: 15,8 x 4
• Router base dia. max: 180 mm

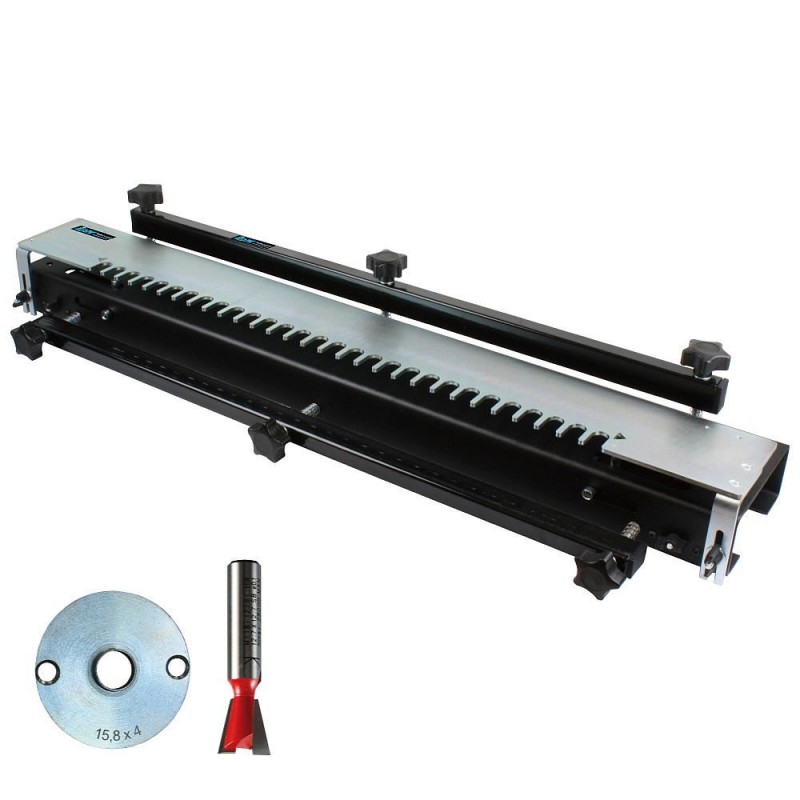

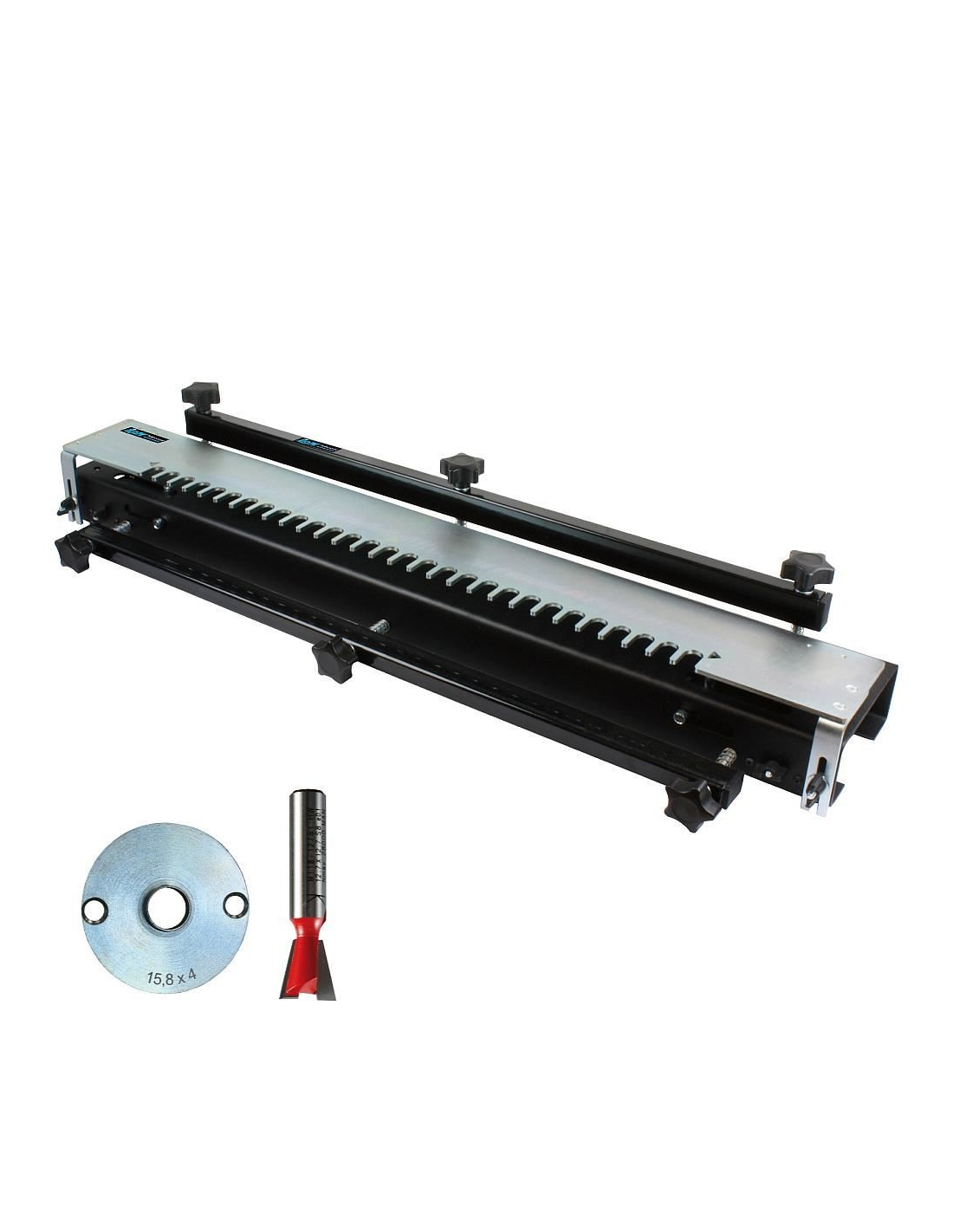

Supplied with:
• Complete dovetail jig
• 12,7 mm half blind dovetail template
• Guide bush D 15,8 mm, 4 mm
• Dovetail Router Bit  12,7 x 12,7 mm 14° shank 8mm
• Instruction manual

Some router types may not support the IGM guide bush. You can erase this difference with the help of a FRB170 Universal clear base, which you affix to the base of your router, center it accurately and fit it with the IGM guide bush. Code FRB170.
