FD6170
На склад
214,53 лв.
Доставка 7 работни дни!

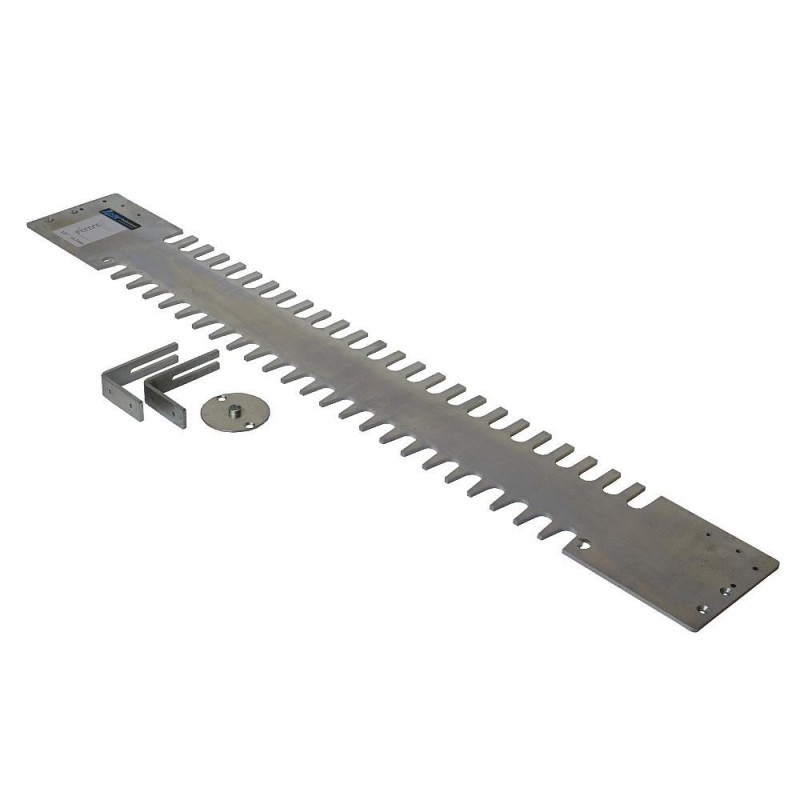

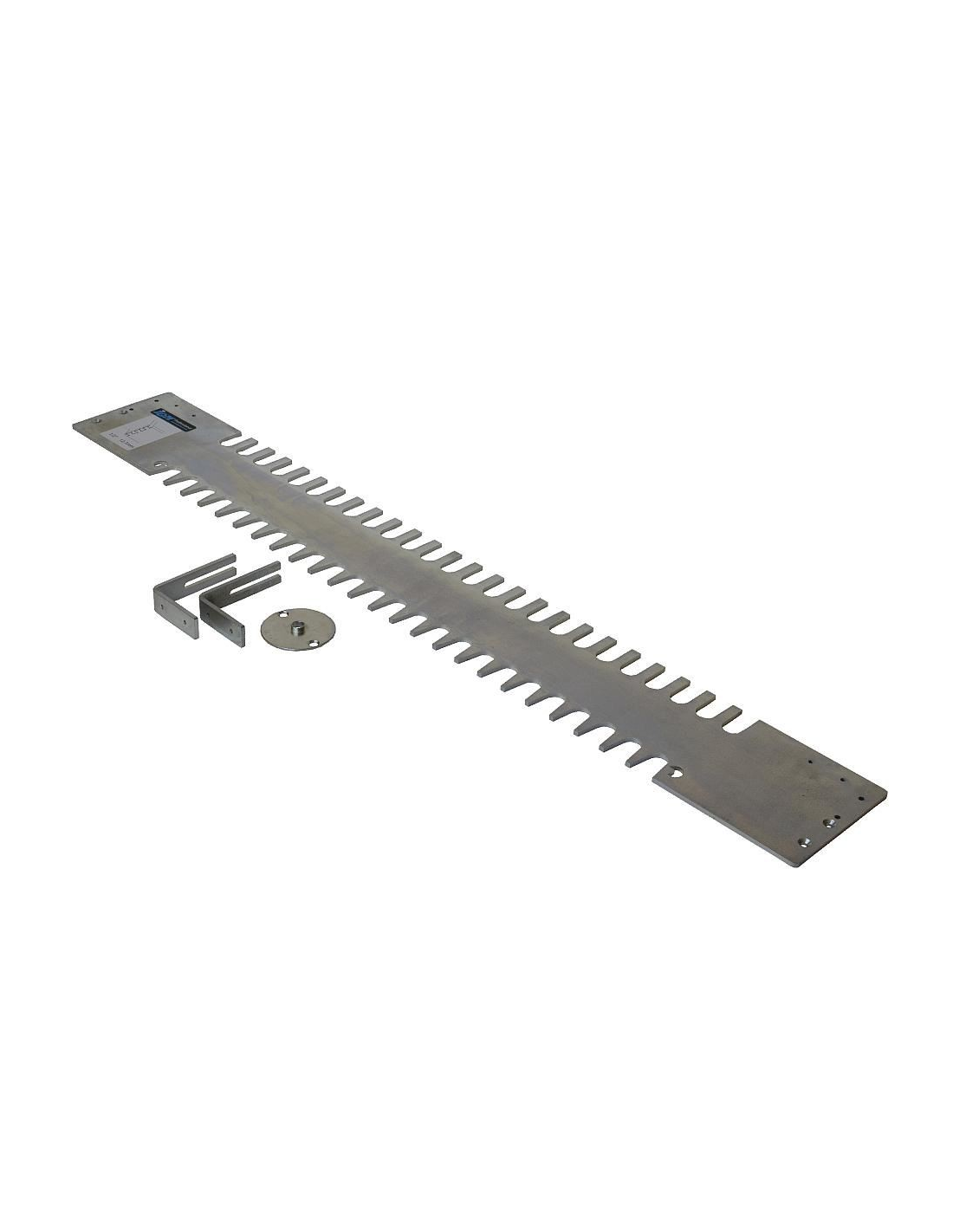

12,7 mm Through dovetail joint- optional template for a dovetail jig FD 600.
The templates are reversible, one part is made for a dovetail groove and the other for the conical cut. Two router bits are used as well as two guide bushes, to make one joint on one template.

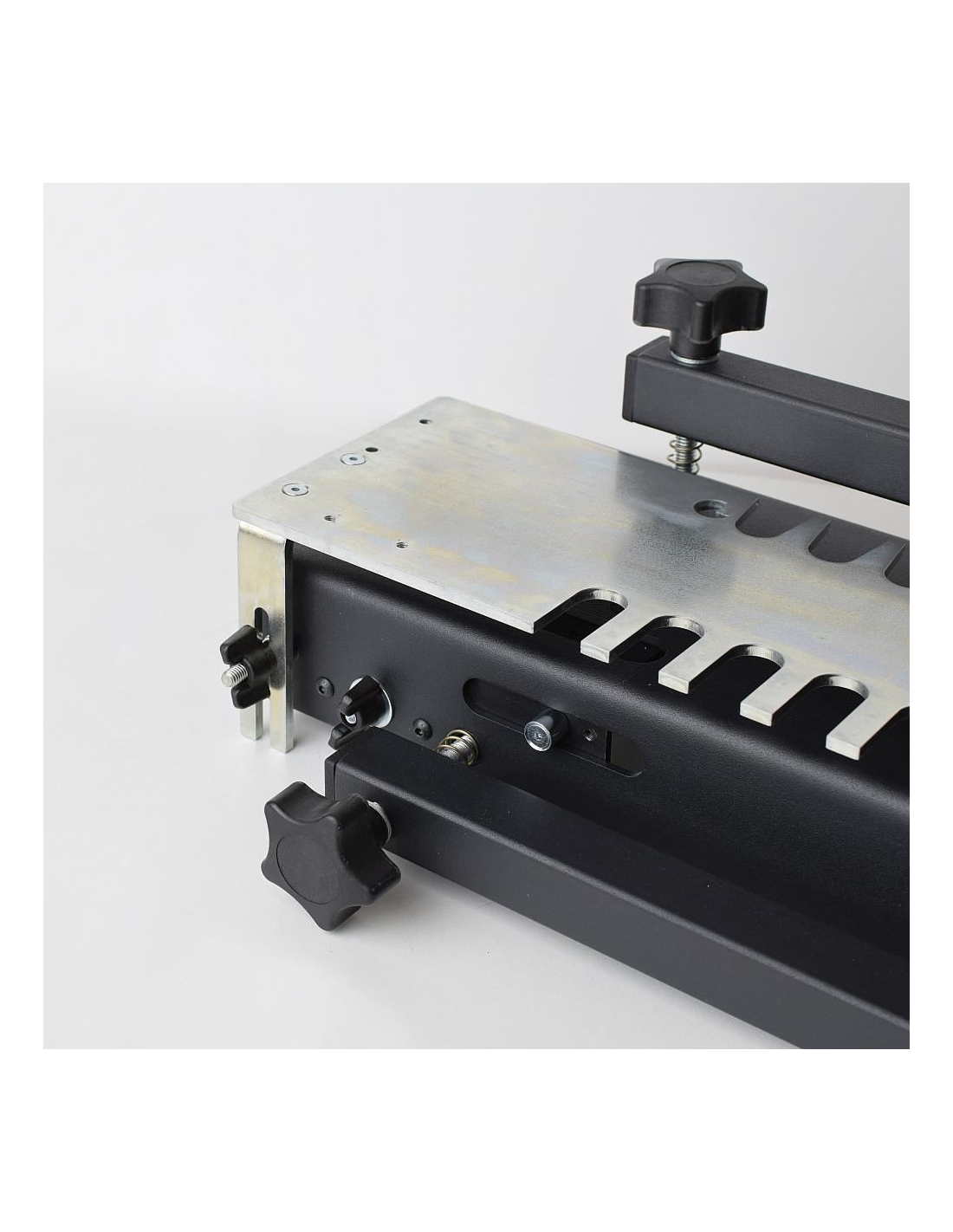

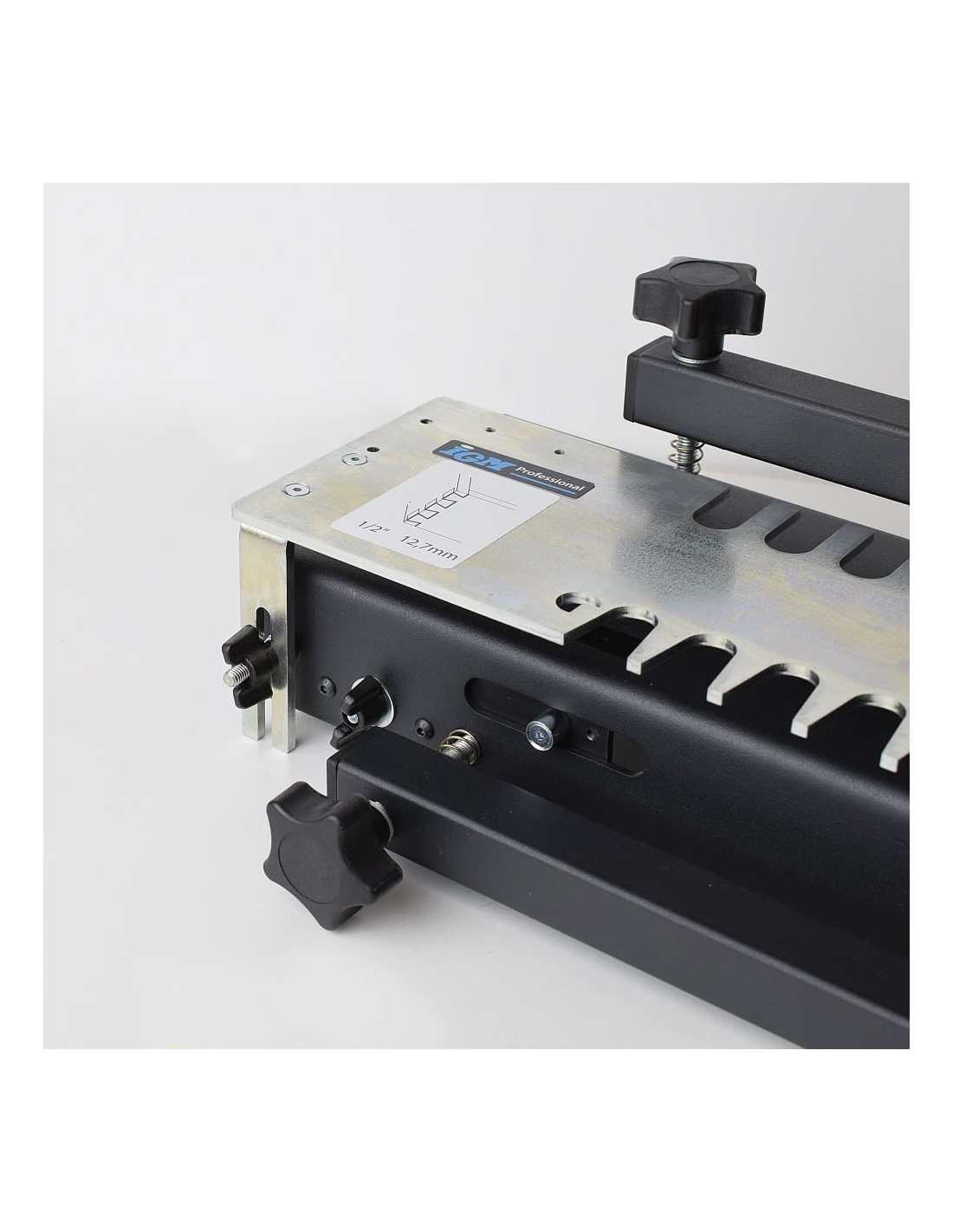

Additional templates offer more possibilities for different types of joints, that you can make on the FD300 & 600 jigs. Those are miniature dovetail joint, box joint and through dovetail joint. The option to acquire additional templates extends the value of our dovetail jig against the competition.

Supplied with:
•  Steel template
•  Guide bush 11,1 mm

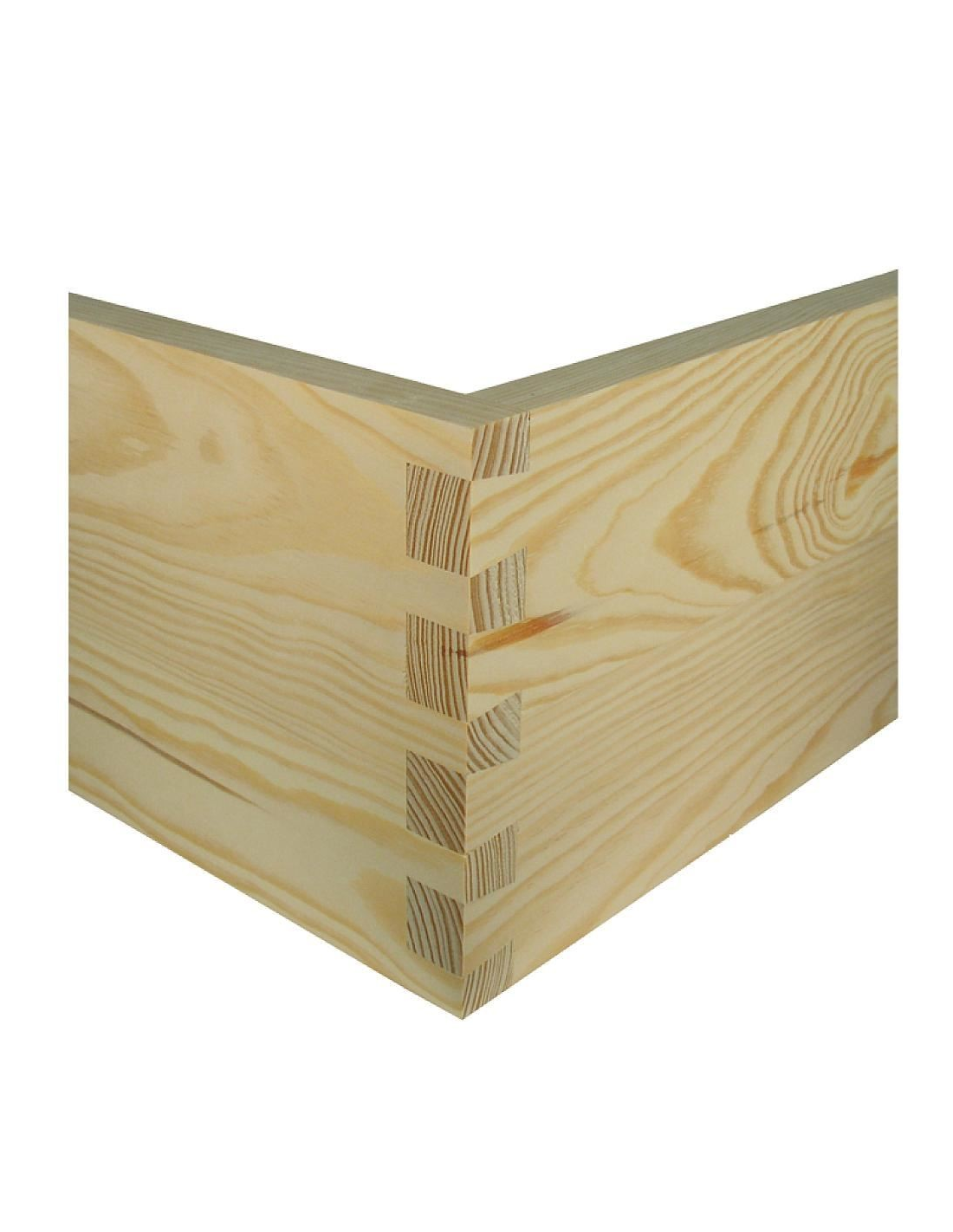

You will need the following for a 12,7 mm through dovetail joint:
• M100-08081 HM Router bit D 8 x 25 mm Shank 8 mm
• M118-12981  HM dovetail bit D 12,7 x 20,6 mm / 8° Shank 8 mm
• (second guide bush D 15,8 x 4 mm is also included)
