Струг за дърво JET JWL-1015

• 6 steps of spindle speed ranging from 400–3300 rpm.
Full cast iron construction with extra 13 cm wide lathe bed.

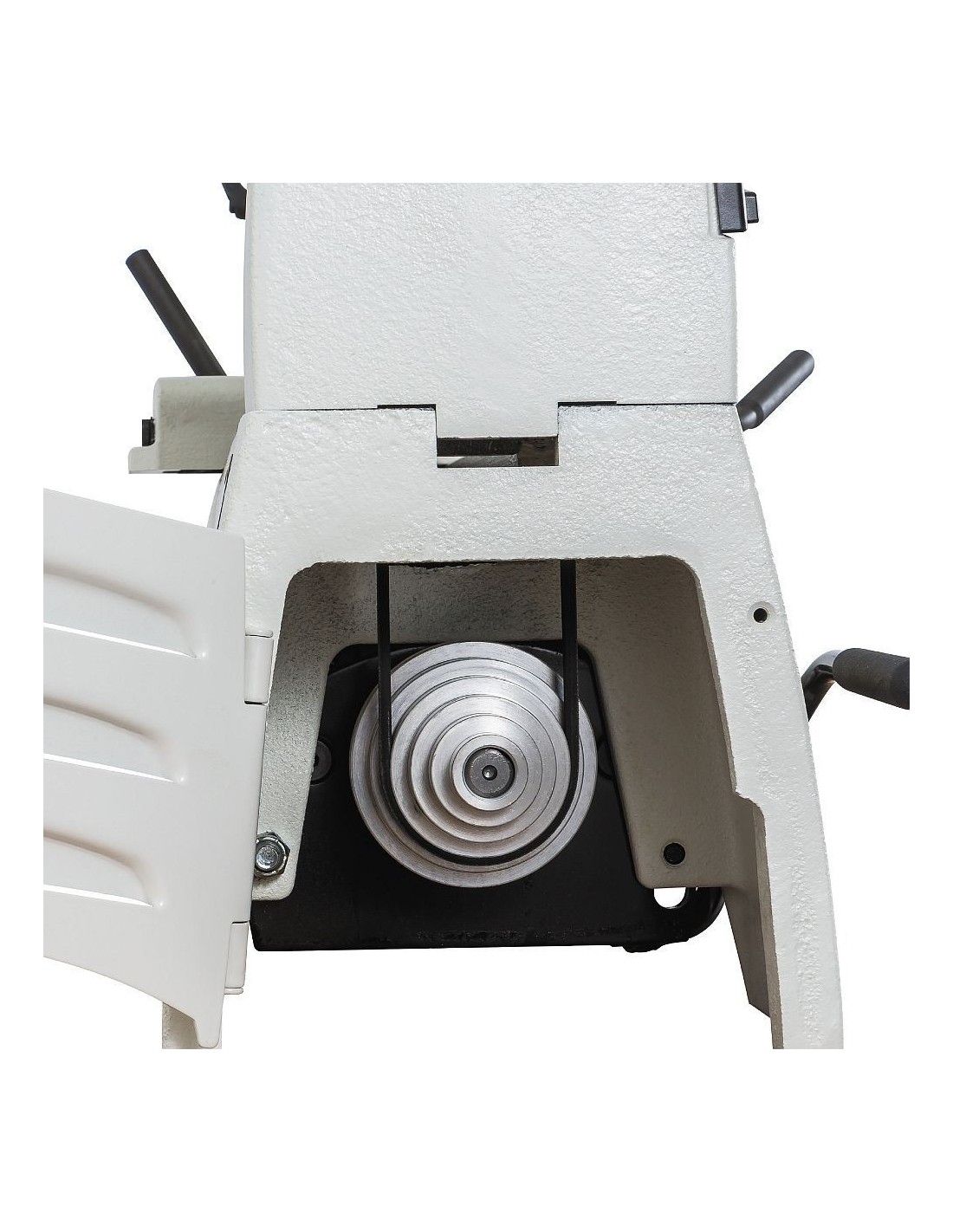

Improved tensioning system with easy belt speed change.
Cast iron spindle and tailstock provide maximal strength and rigidity.
Extreme stability and low vibrations.
Spindle indexed every 15° for fluting or veining.

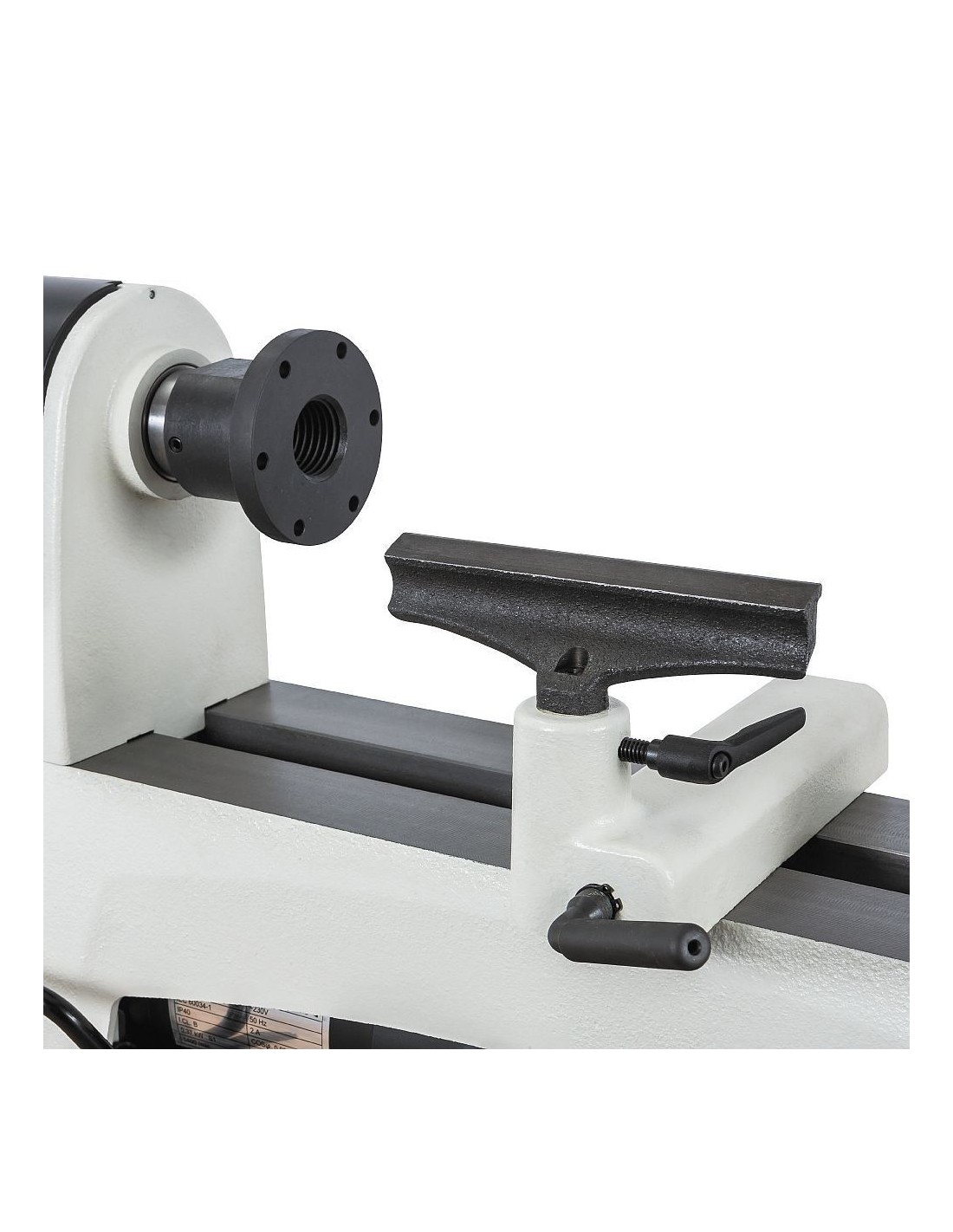

Cam lock levers on tool rest and tailstock.

121-JWL-1015
На склад - ограничена наличност
1712,24 лв.
Доставка 7 работни дни!

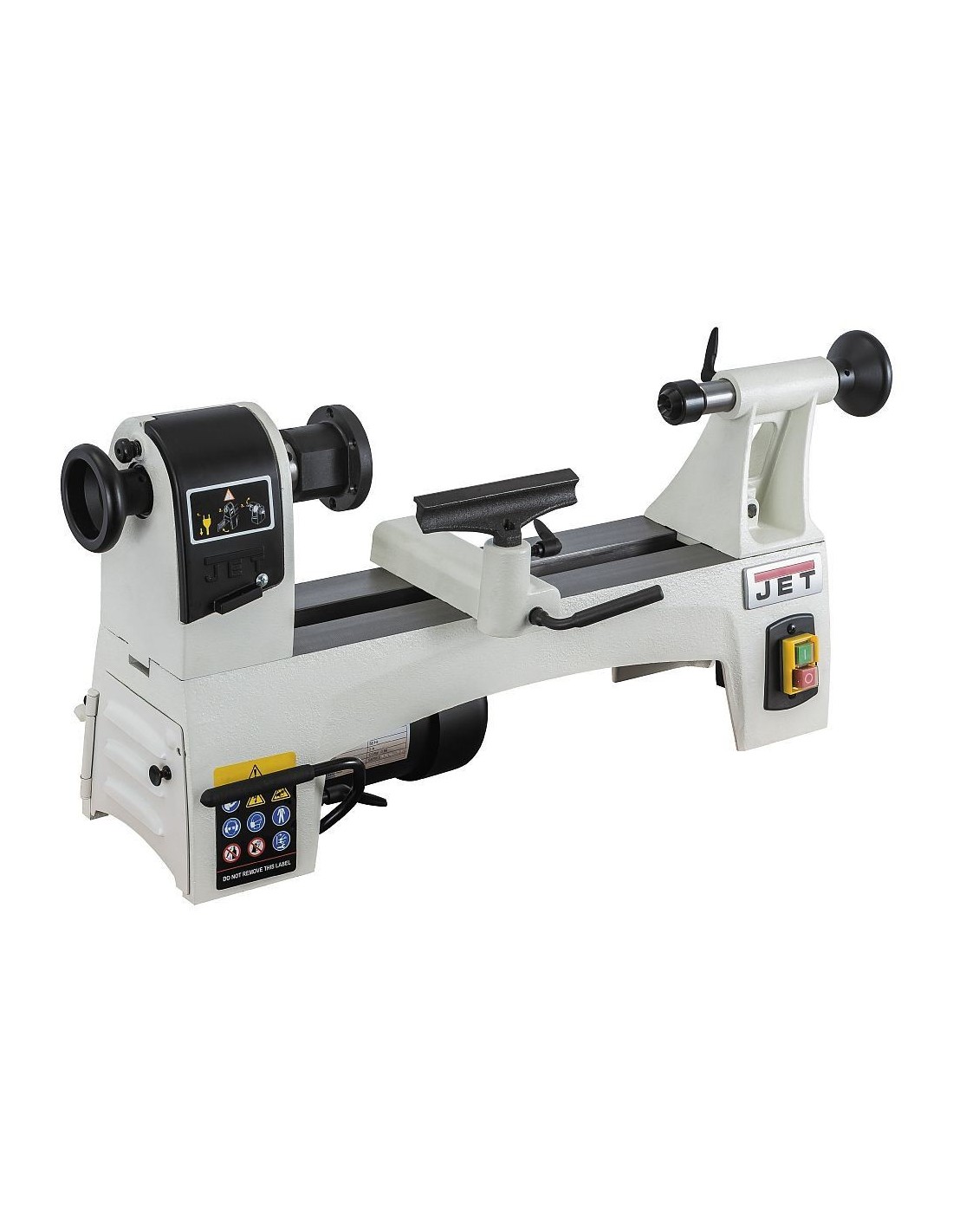

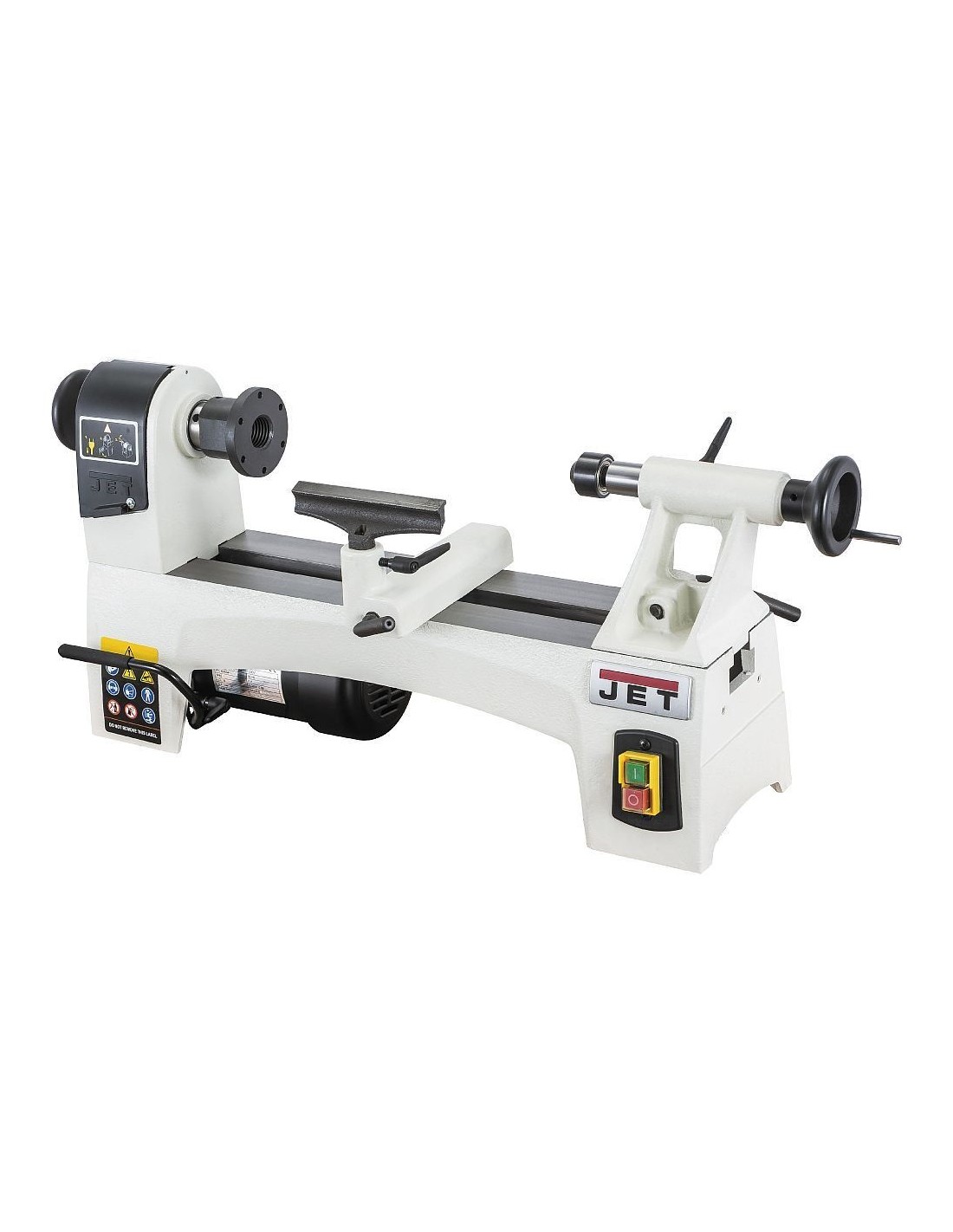

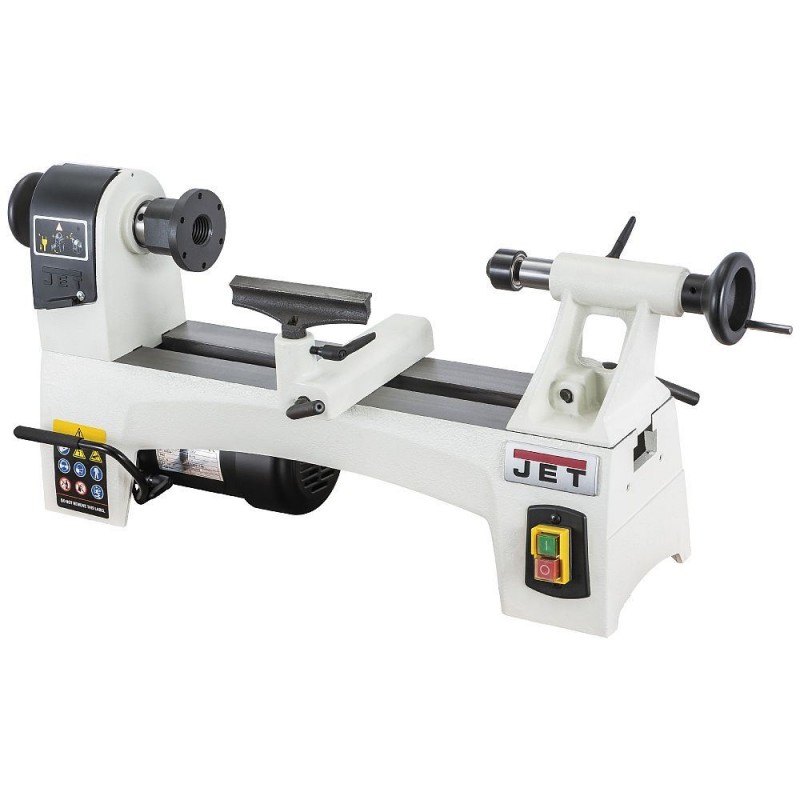

The JET JWL-1015 is an excellent and compact revolutionary small wood lathe of new generation packed with unique construction solutions, which make your work much easier.

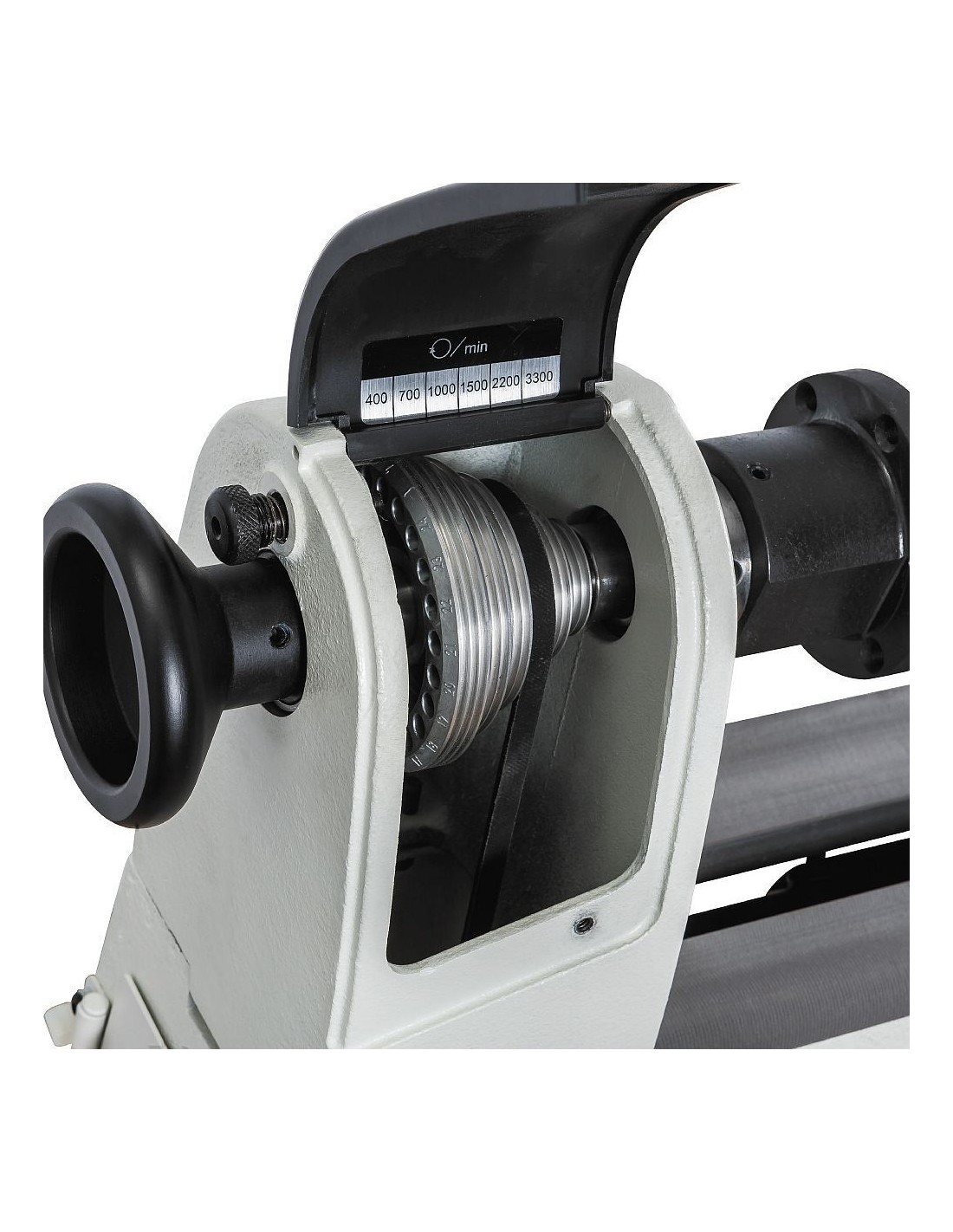

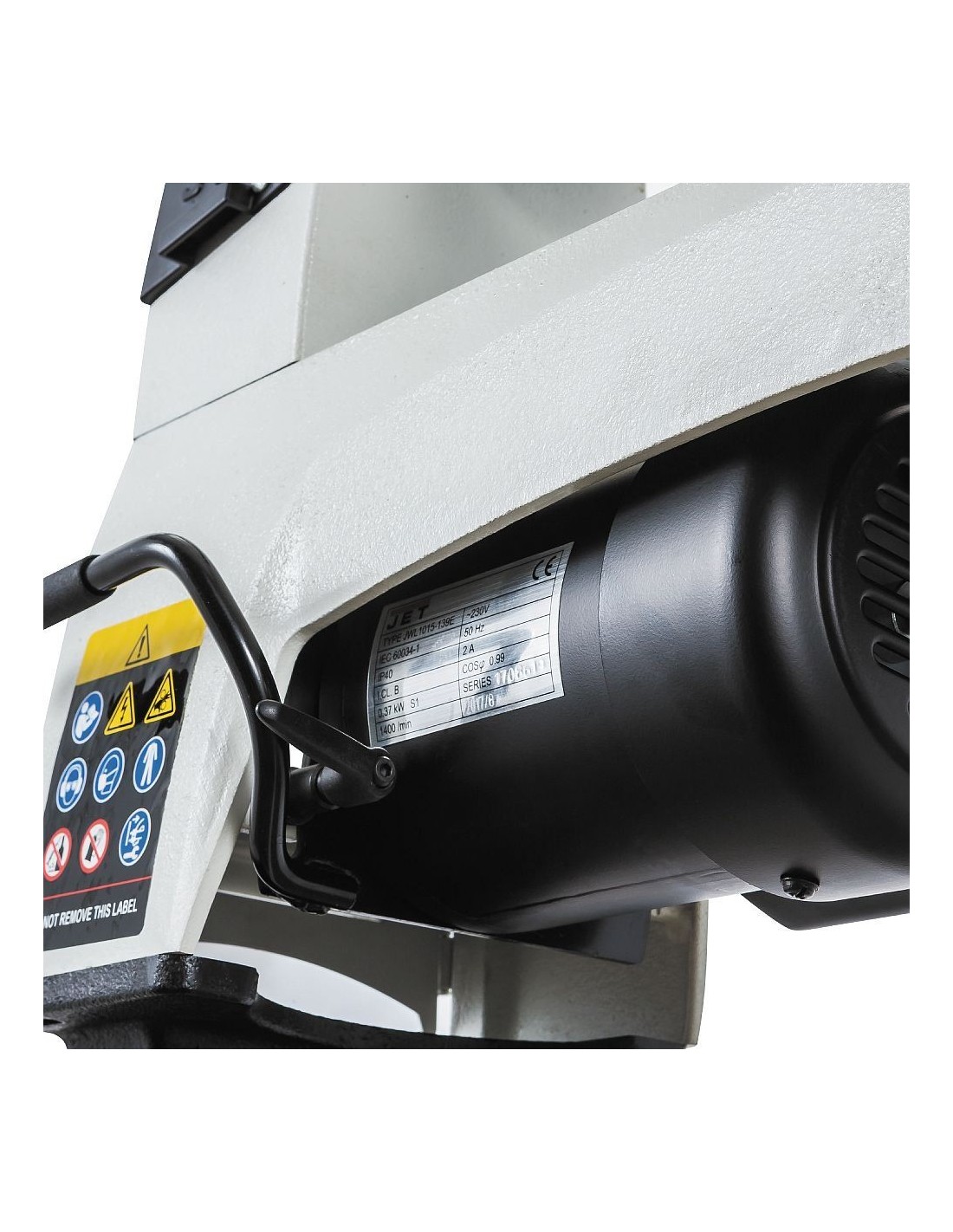

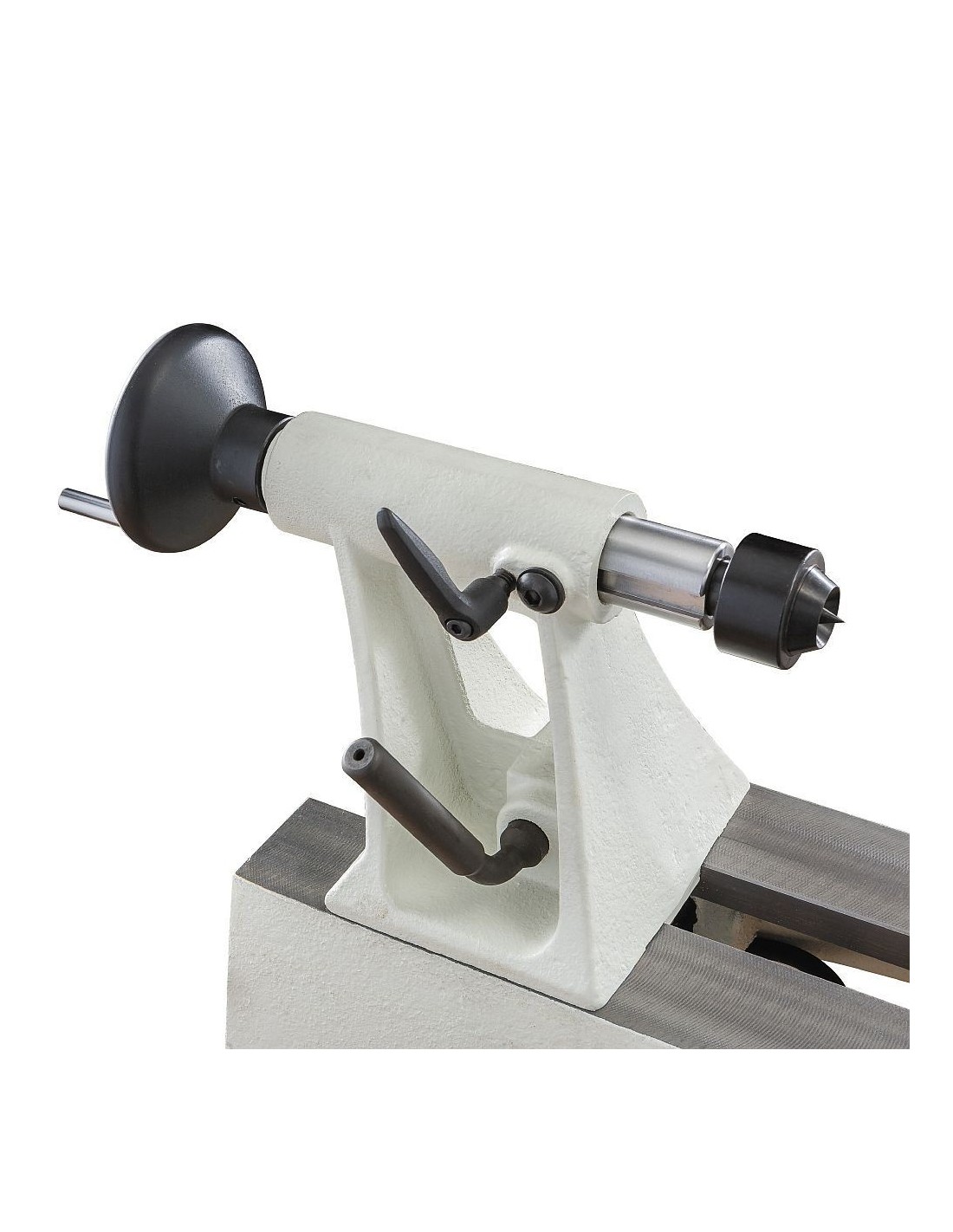

This lathe is designed for you to have woodturning constantly under control. Machine is made from full cast iron with extra 13 cm wide lathe bed ensuring high stability, minimal vibrations and much better working support. The spindle has the common M33 x 3,5mm thread and has a MK2 internal taper. It is mounted on massive bearings and is driven by a belt through a sufficiently powerful engine. The tailstock also has a 9,5 cm internal bore, the spindle having a 50 mm travel and is self-ejecting. Spindle has 15° locking indexation. Powered by a 370 W induction motor in 6 steps variable speed there is a good range for any project. Spindle speed can be changed to 400, 700, 1000, 1500, 2200 and 3300 rpm by adjusting the position of the belt. The change is quick and easy thanks to lever belt releasing and quick release of pulley cover. All controllers are made of metal. No doubt JWL-1015 is the perfect choice for the amateur woodturner or the advanced turner looking for a small, fully featured machine.

N.B. The distance between centres will vary and be dependent on the type of centres or accessories used.

Specification:
Rating: Professional
Input/output power: (230V): 500/370 W
Speed: 400, 700, 1000, 1500, 2200, 3300 rpm
Max. diameter over bed: 250 mm
Max. diameter with tool rest: 185 mm
Distance between centres: 370 mm
Spindle thread: M33x3,5
Spindle/tailstock taper: MK2/MK2
Spindle/tailstock bore: 9,5/9,5 mm
Spindle travel: 50 mm
Overall length x width x height: 890 x 300 x 370 mm
Nett weight: 35 kg
